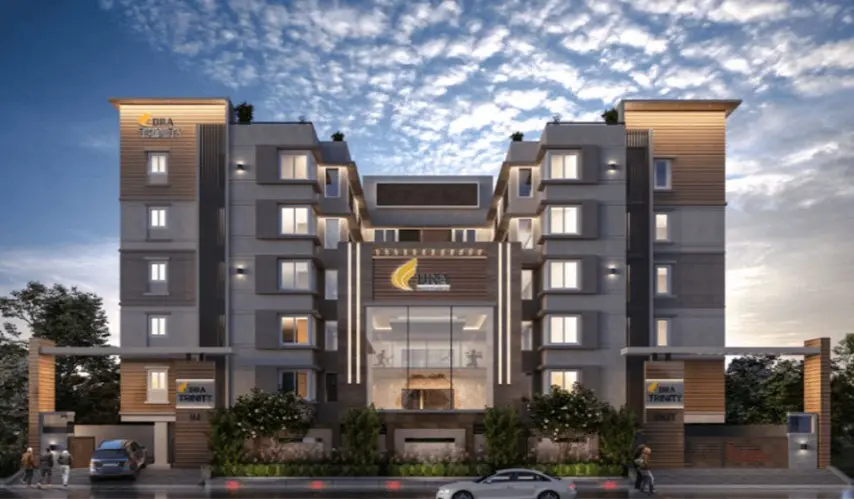

DRA Trinity

DRA Trinity is an exclusive residential retreat developed by DRA Homes that embodies the best of modern boutique-style living in the city centre of Thoraipakkam, Chennai. If you have been searching for the ideal home to balance the fast-paced, energetic lifestyle associated with living in a large condo or apartment building with the quiet comfort that comes from owning your own property and having a place to retreat, then this is where you'll find it.

If you seek a lifestyle that offers a warm and friendly environment rather than that typically found in large residential complexes, DRA Trinity in Thoraipakkam is a unique five-storey building comprised of only 50 premium units; therefore, you will not just be another number in a large development; you will feel connected to your neighbours and part of a small, intimate community. All of the apartments in this project are 3 BHK, range from 1238 to 1434 sq ft of space and are designed with an emphasis on airflow and light, and no wasted space.

You do not have to wait because it is already finished. Once completed, you can start living the life of your dreams. Amenities are completed with maximum quality; e.g., there is a complete fitness center, a multi-purpose use hall for large events, as well as separate outdoor play areas for children and the unique new kids' play court facility. The proximity to global technology parks, top-rated schools, and premier medical facilities; simply put, this community is the best possible address, which will enable you to achieve the ultimate work-life balance.

SPECIFICATIONS

STRUCTURE

• Structural System : RCC framed structure designed for seismic compliance (Zone-III). Masonry AAC block

MASONRY WALL

• Masonry : AAC block masonry wall.

• Pest Control : Anti-termite treatments wherever applicable during the construction stage.

FLOOR FINISH WITH SKIRTING

• Living, Dining : 1200mm x 600mm vitrified tile flooring and skirting - (U)

• Master Bedroom : Wooden Finish vitrified tile flooring and skirting - (U)

• Bedrooms & Kitchen : 600mm x 600mm vitrified tile flooring and skirting

• Bathrooms : 300mm x 300mm anti-skid ceramic tile flooring.

• Balcony : 300mm x 300mm anti-skid ceramic tile flooring

WALL FINISHES

• Internal Walls : Two coats of acrylic emulsion over one coat primer and two coats of wall putty

• Ceiling : Two coats of acrylic emulsion over one coat primer

• Exterior Walls : Plaster finish with weatherproof texture paint or weatherproof emulsion paint as decided by the architect.

• Bathrooms : 300mm x 450mm Glazed ceramic wall tiles up to 7'-0" height.

KITCHEN&UTILITY / SERVICE AREA

• Kitchen platform : Bare Kitchen.

• Electrical point : Provision for chimney, water purifier & washing machine.

BATHROOMS

• Sanitary Fixture : Wall mounted European Water Closet (EWC) of JAQUAR / PARRYWARE or equivalent. Rimless wall mounted EWC for all the toilets. (The rimless toilet is easier to keep clean, it will stay more hygienic after every flush. The direct flush technique used by most rimless toilets shoots water around the whole of the bowl, which cleans the pan much more effectively than a regular toilet) - (U)

• CP Fitting : Health faucet, pillar cock, SINGLE LEVER HI-FLOW CONCEALED DIVERTER FOR HOT & COLD MIXER (U), overhead shower of JAQUAR / PARRYWARE or equivalent

• Drain : SS square designed gratings will be provided..

• False Ceiling : Grid type false ceiling will be provided above 7'-0" height (easy maintenance of plumbing lines & geysers)

JOINERY

• Main Doors : Pre-engineered veneer finish flush door with architrave, ironmongery like door lock, tower bolt, door viewer, magnetic catcher will be provided

• Bedroom doors : Pre-engineered laminate finish flush door with architrave , ironmongery like door lock, tower bolt, magnetic catcher will be provided

• Bathroom doors : Pre-engineered FRP moulded shutter doors with ironmongery like thumb turn lock and a latch will be provided

WINDOWS

• Windows : UPVC sliding windows with necessary hardware will be provided

• French doors : UPVC frame and sliding door with see through glass.

• Ventilators : UPVC frame with glass louvered ventilation will be provided

• MS Grill : MS safety grills will be provided for all the sliding windows inside the apartment

HANDRAIL

• Balcony Handrails : SS handrail with Toughened Glass as per architect design -(U)

WATERPROOFING

• Water proofing : Water proofing will be done the water retain area like lift pit, toilet, balcony, UG sump, STP & OHT

ELECTRICAL

• Power Supply : 3 Phase connection for each apartment

• Power back-up : 350 watts for 2BHK, 600 watts for 3BHK, 800 watts for 4BHK through Automatic Changeover Current & Limiter (ACCL). (Instead of pre-designed use of electrical light points during power cut flexibility to use the lighting circuit of choice within the allotted power capacity) - (U).

• Safety device : RCCB safety device will be provided for each apartment (protection against voltage fluctuations, earth fault as well as any leakage current).

• Switches & sockets : Modular Switches and sockets will be of Anchor Roma Plus/ L & T or equivalent.

• Wires : Fire Retardant Low Smoke (FRLS) copper wire of a quality ISI brand.

• TV : Provision for TV in living and master bedroom with pre-wired co-axial cable for DTH easy connectivity.

• Data : Provision for fibre optical cabling in living

• Air-conditioner : Split air-conditioner provision will be provided living/dining and all the bedrooms. Drain and copper pipe provision for A/C (Easy for fixing your air-conditioner without calling technicians to drill the walls)

• Exhaust fan : Exhaust fan provision for all the toilet.

• Geyser : Geyser provision for all the toilets.

PLUMBING

• Water supply : Hydro pneumatic Pressure System (Provides water at constant pressure in all apartments irrespective of the floor vis-à-vis traditional overhead tank) - (U).

• Internal : All internal plumbing line are CPVC.

• External : All external plumbing lines are UPVC / PVC pipes.

• Drainage : All drainage plumbing lines are PVC pipes.

COMMON FEATURES

• Power back-up : 100% power back-up for common areas.

• Lift : 13 passenger stretcher lift KONE / FUJITEC or equivalent.

• Lift facia : Tiles or panel cladding will be provided.

• Lobby & corridor : Ground floor lobby finished with vitrified flooring with gypsum false ceiling. All the corridors will be finished with vitrified tile flooring with matching skirting. Painting will be two coats of acrylic emulsion over one coat primer.

• Staircase : Anti- skid ceramic tile flooring and painting will two coats of acrylic emulsion over one coat primer.

• Staircase handrail : MS handrail with enamel paint for all the floors.

• Parking area : Granolith cement flooring with car park numbering

• Terrace floor : Weathering course with pressed clay tile finishing

• Driveway : Well defined driveway with interlocking paver block laid all-round the building, demarcation of driveway, convex mirror, driveway lighting, speed breakers for safe turning in driveway.

• STP : Centralized sewage treatment plant will be provided.

• Safety : CCTV surveillance cameras will be provided at entry and exit, stilt lobby, driveway & All floors lift/staircase lobby.

• Security : Security cabin will be provided at the entrance.

• Compound wall : Building perimeter fenced by the compound wall with grand entry gates for a height as per architect / landscape design.

• Landscape : Adequate landscape will be provided as per the landscaping consultant. Signages Apartment owners name board will be provided in the stilt floor.

IT Company

• Capgemini - 2.7 Kms

• Infosys - 4 Kms

• Transport

• Sholinganallur Junction - 3.7 Kms

• Thoraipakkam Junction - 6 Kms

Entertainment & Shopping

• BSR Mall - 6 Kms

Others

• Anjappar Restaurant - 800 M

DRA Homes has established itself as a reliable real estate developer that provides exceptional services to its clients throughout four decades of operational success. The company has established a trustworthy reputation throughout Southern India because it conducts business operations in a transparent manner while delivering services that create happiness for more than 12000 families through its complete project delivery system which delivers projects on schedule and meets high construction standards.

DRA has built its business operations through diversified portfolio management which enables customers to achieve their home ownership goals. DRA provides its customers with two options because they need either a modern apartment that uses V-Design principles to create open spaces or light-filled areas or a complete villa that provides them with exclusive outdoor peace. DRA offers customers multiple high-value properties which include complete title rights and high potential asset appreciation, plus land buying opportunities in prime areas that enable customers to build their own residences.

DRA Homes establishes its unique identity through its commitment to building long-lasting value, which continues beyond the first purchase. DRA Homes maintains their attractive and healthy community spaces through their use of sustainable building methods and high-quality construction materials, and their effective management of real estate. DRA Homes created a foundation that will generate everlasting moments through its four decades of home construction experience, which embodies its core values of integrity and professional excellence.
